Signalinks 5G CPE

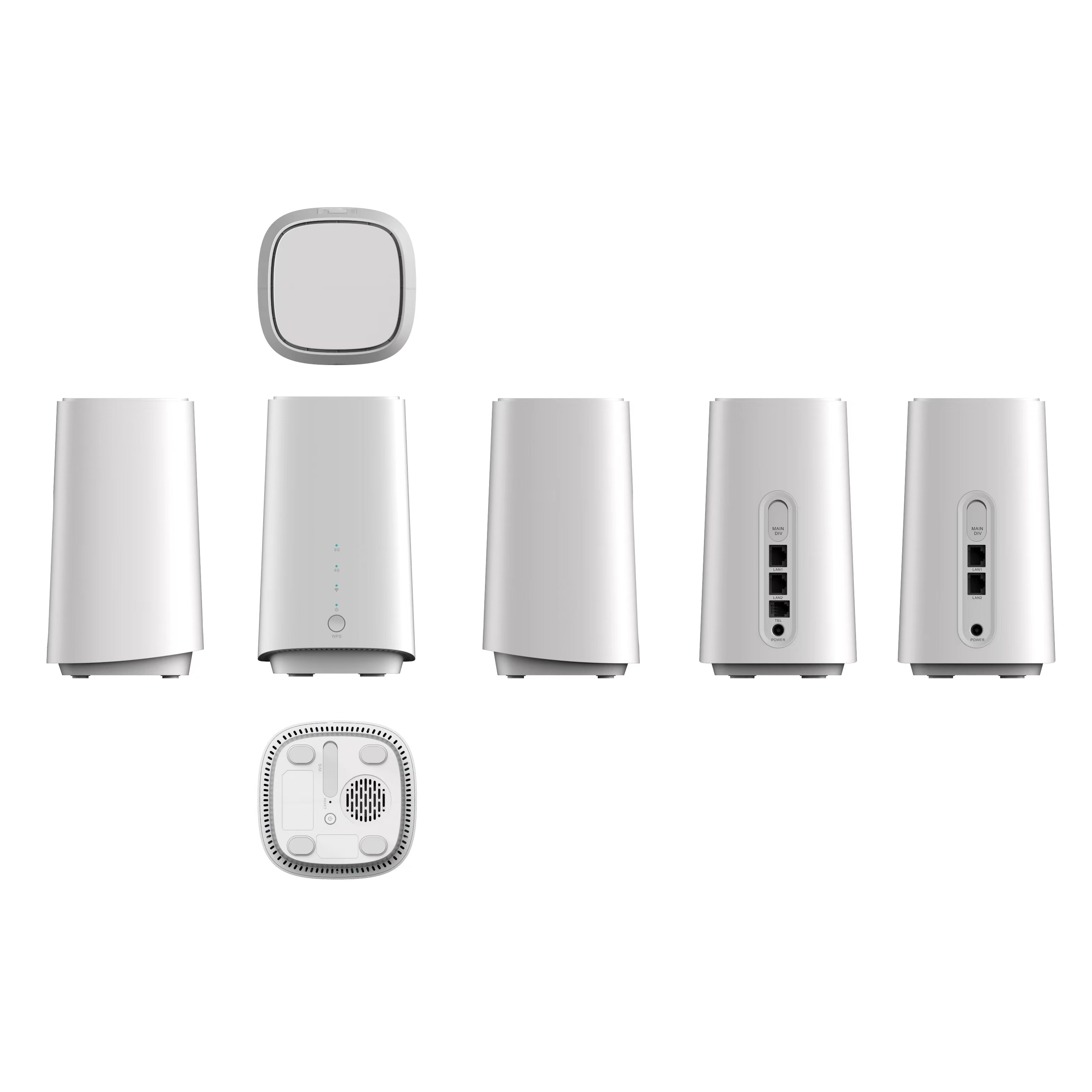

Indoor 5G CPE
This is an indoor wireless broadband terminal for use at home or small offices, home offices (SOHO) and other scenarios.
It supports 3GPP Release 15.
It has the below features:
Data services:
5G SA Sub-6 GHz transmission rate 4.67Gbps(DL)/2.5Gbps(UL)(Theoretical peak value; the
actual rate is related to the actual test environment )
5G NSA Sub-6 GHz transmission rate 3.74Gbps (DL)/1.46Gbps (UL)(Theoretical peak value;
the actual rate is related to the actual test environment )
LTE transmission rate 1.6Gbps (DL)/150Mbps (UL)(Theoretical peak value; the actual rate
is related to the actual test environment )
network frequency bands:
5G：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
LTE：B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42
Note:The frequency bands actually supported may vary slightly depending on the target market.
Wi-Fi：
Support 802.11 b/g/n/a/ac/ax
2.4GHz Wi-Fi 4x4 MIMO, the maximum transfer rate of 1200Mbps
5GHz Wi-Fi 4x4 MIMO, the theoretical maximum transmission rate of 2400Mbps,
Number of accessible users: 128
Wan/LAN GE port*1,GE port LAN * 1, tel port*1 (optional)
Multi APN function (optional)
Routing mode: NAT enable (default)/IP pass-through
VPN Client Services
Local administration through WebUI management interface
Remote management through TR-069
Wi-Fi dual-band in one
